Model train enthusiasts often share a passion for replicating the real world in miniature, and a crucial aspect of achieving this level of realism lies in incorporating electronics into their layouts. The fusion of traditional model train craftsmanship with cutting-edge technology has enabled hobbyists to create stunningly lifelike environments that captivate the imagination. Whether you’re a novice or a seasoned model railroader, delving into the world of model train electronics can be a transformative experience, adding depth, interactivity, and authenticity to your miniature railway universe.
From dynamic lighting systems that mimic the ambience of a bustling cityscape to intricate soundscapes that echo the clatter of a moving train, the possibilities are as vast as your creativity. This introduction sets the stage for an exploration of how electronics can elevate your model train layout, making it a dynamic, immersive, and continually evolving work of art.
The Importance of Electronics in Model Train Layouts
Model train layouts have come a long way from the simple oval track and basic locomotives of the past. Electronics play a pivotal role in modern model railroading, enhancing the realism, interactivity, and overall enjoyment of the hobby. The integration of electronic components allows hobbyists to recreate the sights and sounds of a real-world railway, from lifelike lighting and authentic locomotive sounds to automated train control and interactive features. In this guide, we will delve into the significance of electronics in model train layouts and how they contribute to a truly captivating and immersive experience for enthusiasts of all levels.
Objectives of the Guide
Highlight the Transformative Role of Electronics
We will discuss how electronics have revolutionized the model train hobby, making it more dynamic and engaging. From lighting effects and soundscapes to computerized control systems, we aim to underscore the transformative impact of these technologies.
Empower Model Railroaders
Our guide aims to empower model train enthusiasts by providing insights, tips, and practical advice on incorporating electronics into their layouts. We will offer a step-by-step approach for both beginners and advanced hobbyists to make their layouts more realistic and enjoyable.
Inspire Creativity and Customization
Electronics allow for endless customization. We will encourage readers to think creatively, offering ideas and suggestions for creating unique and personalized layouts. Whether modeling a specific era, location, or theme, we aim to inspire and guide enthusiasts in their creative endeavors.
Promote Realism and Attention to Detail
Realism is at the heart of model railroading. We will emphasize the importance of attention to detail, providing insights on how electronics can be used to create realistic scenes, including weathering, scenery, and lifelike structures.
Foster a Sense of Community
Model railroading is a hobby often shared with others. We will discuss how the integration of electronics can enhance the social aspect of the hobby, from collaborative projects to exhibitions and online communities.
Basic Electronics for Model Trains
Understanding basic electronics is essential for model train enthusiasts looking to enhance their layouts. Even if you’re new to the world of electronics, learning about fundamental components and safety measures can greatly contribute to the realism and functionality of your model train setup.
Types of Electrical Components

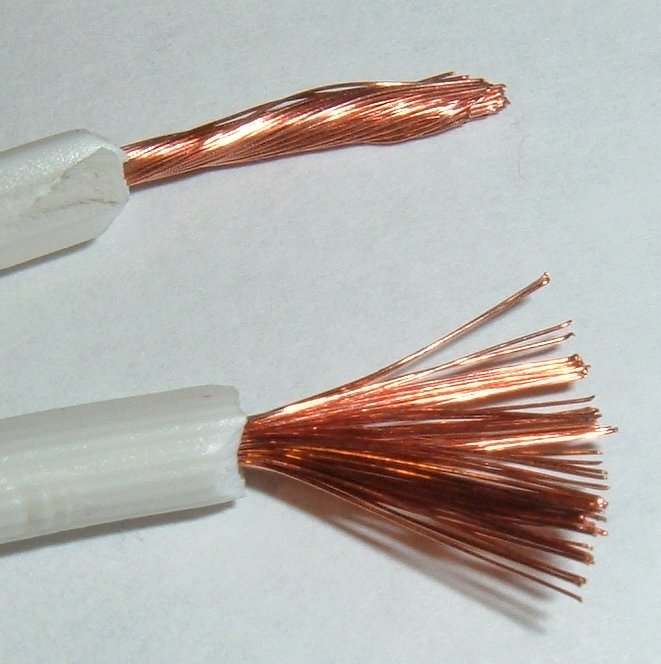

Wires are the backbone of any electronic circuit. They conduct electricity and connect various components in your layout. Different wire gauges are used based on the current requirements of the devices they connect.
LEDs (Light-Emitting Diodes)
LEDs are energy-efficient light sources commonly used in model trains. They come in various colors and can be used for locomotive headlights, building illuminations, and signals. LEDs consume less power and generate less heat than traditional bulbs.
Switches decide how electricity flows through a circuit. They can be simple on/off switches or more complex ones like toggle switches or rotary switches. Switches are crucial for turning specific features on or off in your layout, adding interactivity.
Selecting the appropriate power source is a fundamental aspect of wiring your model train layout. It’s imperative to use a power source that aligns with the specific requirements of your components. Using the wrong voltage or current can lead to damage to LEDs, switches, and other electronic parts in your layout. To prevent such issues, carefully read the specifications provided by the manufacturers of your electronic components and ensure that the power source you choose falls within the recommended voltage and current limits. By adhering to these guidelines, you not only safeguard your electronic elements from harm but also promote the reliability and longevity of your model train system.
Understanding the polarity of LEDs is crucial when working with these components in your model train layout. LEDs are indeed polarized, which means they have a specific positive (+) and negative (-) lead. Connecting them incorrectly can lead to damage or “burn out” of the LED. To ensure proper installation, always refer to the datasheet or packaging that accompanies the LED for information on the correct orientation. This guidance will help you identify the anode (positive) and cathode (negative) leads, ensuring that you connect them to the power source correctly and prevent any potential damage to these lighting elements in your layout.
Avoid Overloading Circuits
Preventing circuit overloads is a crucial aspect of wiring your model train layout safely and effectively. It’s essential to calculate the current requirements of your LEDs and other electronic components. This information helps you determine the load each circuit can handle without overheating or sustaining damage. Avoid overloading circuits by ensuring that the total current draw from connected devices remains within the safe operating limits of the circuit components. Distribute your devices across multiple circuits when necessary to maintain an even load and prevent potential overheating, which can damage both electronic components and the wiring. By adhering to this principle, you’ll safeguard the reliability and longevity of your model train layout’s electronics.
Insulating wires correctly is an important step in wiring your model train layout to prevent short circuits and ensure the safe and reliable operation of your electronics. Exposed wire connections can lead to unintended electrical contact, causing shorts that may disrupt or damage your circuit. To prevent this, employ insulating materials such as heat shrink tubing or electrical tape to cover and protect any exposed wire connections. Heat shrink tubing, when heated, shrinks tightly around the wires, providing a durable and professional-looking insulation. Electrical tape is a readily available option for a quick and effective way to insulate connections. By incorporating these insulation methods, you reduce the risk of shorts and contribute to the safety and longevity of your model train layout’s electronic systems.
Maintaining proper ventilation in your model train layout is essential, especially when using electronic components that generate heat. Overheating can have adverse effects on the performance and longevity of your electronic parts, potentially reducing their lifespan and reliability. To mitigate this risk, ensure that areas with heat-emitting components are well-ventilated. Adequate airflow helps dissipate heat, preventing the components from reaching damaging temperatures. Proper ventilation also contributes to the overall safety of your layout by reducing the risk of overheating-related issues and ensuring that your model train electronics operate optimally and without compromising their performance or safety.

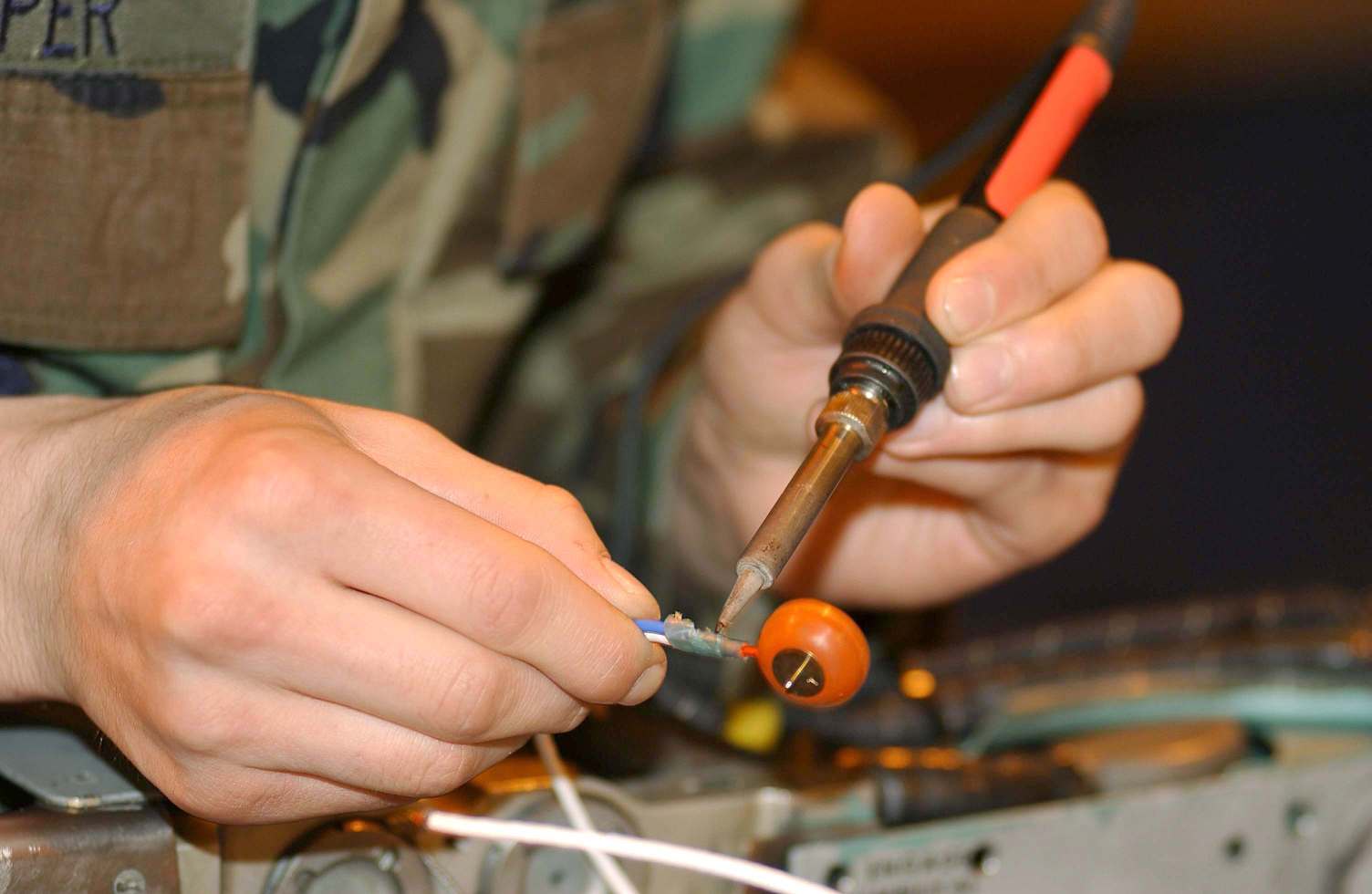

Soldering safety is of paramount importance when working with electronic components for your model train layout. To ensure a safe working environment, it is imperative to follow key safety practices. Firstly, choose to work in a well-ventilated area to ensure proper air circulation during soldering, as this process can generate fumes that may contain potentially harmful substances. Minimizing inhalation exposure is a critical precaution. Secondly, always wear appropriate safety gear, such as safety glasses, to protect your eyes from potential hazards, including accidental splashes of hot solder. Lastly, exercise extreme caution when handling hot soldering irons to prevent burns. Always handle the soldering iron with care and utilize a soldering iron stand to securely hold it when not in use. These safety measures contribute to the overall safety of your soldering operations, ensuring a secure and enjoyable experience as you work with electronic components in your model train layout.
Wiring Your Model Train Layout
Wiring is a critical aspect of your model train layout, as it ensures that power and control signals are properly distributed to all the elements of your setup. Effective wiring not only powers your trains but also enables you to control accessories, signals, and other electronic components. Here’s how to go about it:
Planning the Wiring
Layout design is a fundamental step in creating a successful model train layout. Before you even begin to think about wiring, it’s crucial to have a well-thought-out design. This design should outline the placement of tracks, turnouts, key structures, and the overall arrangement of your miniature world. A carefully planned layout design not only ensures that your layout looks visually appealing but also plays a critical role in determining the routing of your wires. By knowing where your tracks and accessories will be located, you can establish the most efficient and effective path for your wiring, minimizing the risk of unsightly or problematic wire runs. In essence, layout design serves as the blueprint for your entire model train project, setting the stage for a well-organized and visually captivating miniature railway system.
When it comes to power distribution in your model train layout, careful planning is essential. Begin by deciding how you will distribute power effectively to ensure reliable operation. One effective strategy is to divide your layout into power districts. Power districts are sections of your layout that are powered independently. This approach helps prevent voltage drops over long distances, ensuring that all areas of your layout receive consistent and reliable power. By creating power districts and strategically distributing power, you can maintain optimal electrical performance and prevent issues like voltage drops, contributing to the overall success of your model train project.
Selecting the appropriate control system is a pivotal decision in the construction of your model train layout. You can choose between two primary options: Digital Command Control (DCC) or analog control. DCC is a modern, versatile system that enables independent control of multiple locomotives and accessories on your layout. With DCC, you can have precise and simultaneous control over various aspects of your miniature railway, including locomotives’ speed and direction, lighting, sound, and more. It offers a high degree of realism and flexibility, making it a popular choice among model train enthusiasts. In contrast, analog control is a simpler method where one power supply controls all trains and accessories together. The choice between DCC and analog control should align with your layout’s complexity and your desired level of control, ensuring that your model train system operates efficiently and meets your specific preferences.

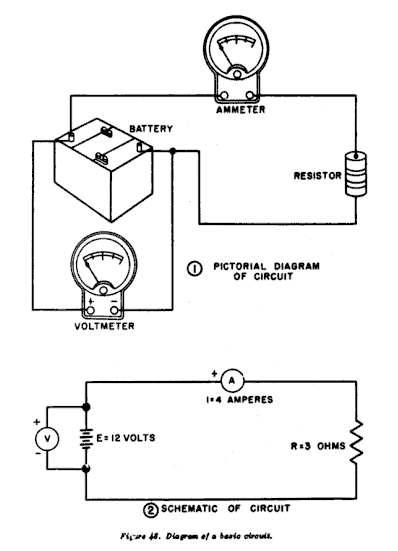

Developing a wiring schematic is an essential step in ensuring that your model train layout’s electronics are wired correctly and efficiently. This schematic functions as a visual representation of the layout’s electrical connections and components, serving as a reference point throughout the wiring process. It provides an overview of the layout’s wiring plan, including the arrangement of tracks, switches, signals, lighting, and any other electronic elements. By creating this visual guide, you’ll be better equipped to organize and execute the wiring of your layout accurately, reducing the likelihood of errors and ensuring a smoother construction process.
Feeder wires are vital for maintaining consistent power distribution in your model train layout. By attaching them at regular intervals, you ensure a steady flow of power from your power source to the track. Choosing the right wire gauge, based on the distance and current requirements, is essential for optimal performance and preventing voltage drop issues. These feeder wires play a crucial role in ensuring reliable operation for locomotives and accessories throughout your layout.
Creating power districts with a track bus is a key element in the wiring of your model train layout. Power districts are sections of your layout that are independently powered and controlled. To establish power districts, you can connect all the feeder wires from specific track sections to a central track bus. The track bus is typically a thick wire or bus wire that carries power and connects to your power source, which can be a transformer in analog setups or a DCC command station in digital layouts. This centralized power distribution method allows you to efficiently manage different areas of your layout, ensuring that power is evenly distributed and enabling precise control over multiple locomotives and accessories within each district. By implementing track buses and power districts, you enhance the operational and functional aspects of your model train layout, providing a more realistic and dynamic experience.
Isolation sections play a crucial role in your model train layout, allowing for independent control of different track segments. To create isolated track sections, you can employ insulated rail joiners or plastic rail connectors. These components break the electrical continuity between adjacent track sections, effectively isolating them from each other. This isolation is essential for various purposes, such as controlling multiple trains separately, activating signals or accessories in specific areas, and preventing interference between different sections of your layout. By utilizing these isolation methods, you gain the flexibility to manage and customize different parts of your model train layout independently, adding depth and realism to your miniature railway world.

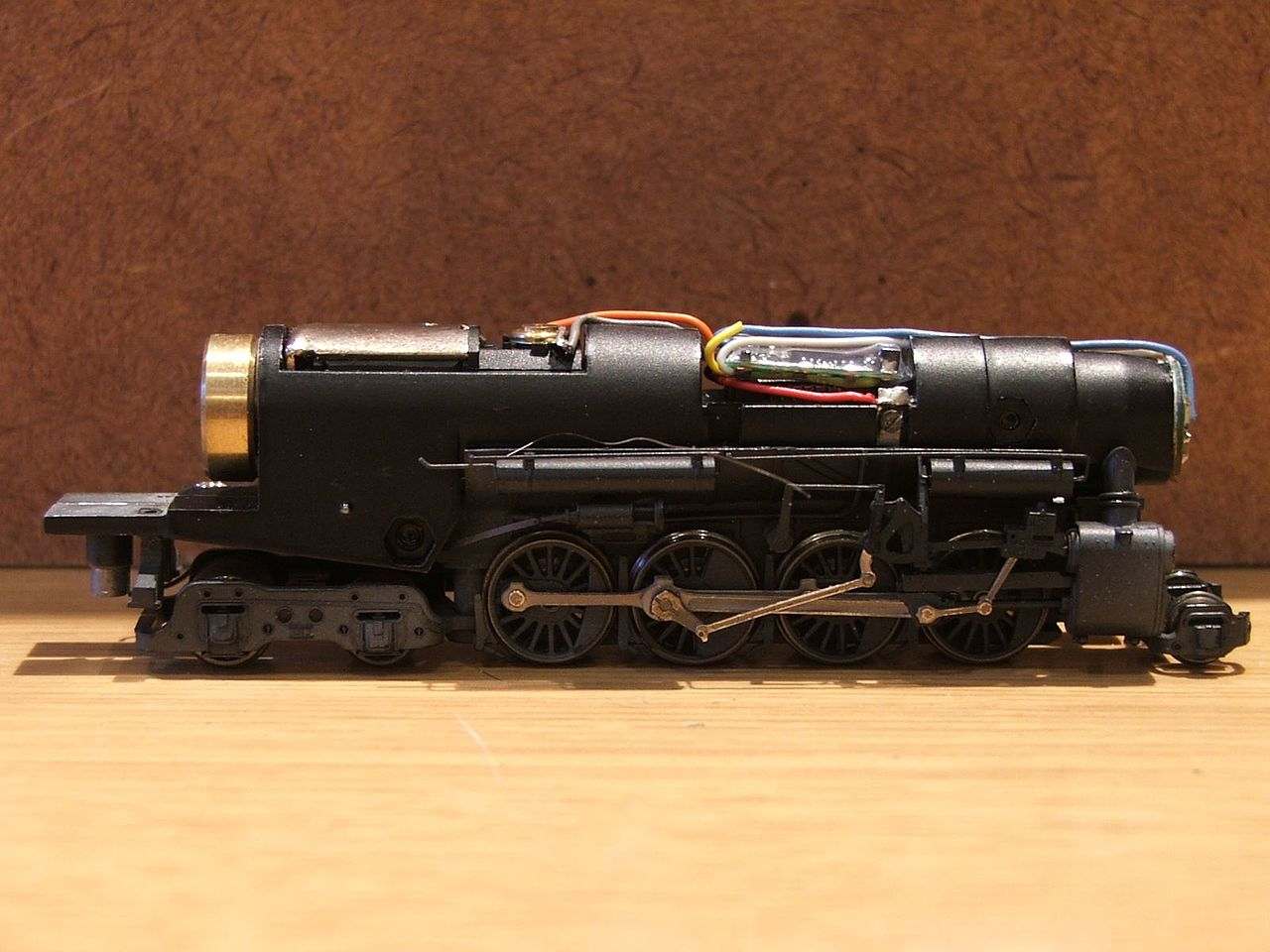

DCC Decoder Installation
For those utilizing Digital Command Control (DCC) in their model train layouts, the installation of decoders in locomotives is a key step in achieving digital control. Decoders are electronic devices that allow for precise control of locomotives, and their installation process involves connecting them to the track and programming them according to your chosen DCC control system’s instructions. By integrating decoders into your locomotives and ensuring they are correctly configured, you can achieve the benefits of digital control, including independent locomotive control, efficient management of multiple trains, and the realization of a highly realistic and dynamic model train experience.
When incorporating accessories into your model train layout, it’s essential to wire them efficiently for control and functionality. Accessories can include switches, signals, lighting, turnouts, and more. To manage these components effectively, wire them to control panels or suitable control devices. It’s a good practice to use color-coded wires, which makes it easier to identify and trace connections. Additionally, labeling wires and components provides a clear reference for maintenance and operation. Properly wiring accessories enhances the interactivity and realism of your layout, allowing you to control various elements with precision and ensuring a well-organized and enjoyable model train experience.
Relays and Switches
Incorporating relays and switches is an effective strategy for automating accessory functions in your model train layout. Relays act as electrical switches that can be controlled by various methods, including push buttons, toggle switches, or integration with your Digital Command Control (DCC) system. These relays allow you to trigger and control various accessories, such as signals, turnouts, and lighting, enhancing the operational and visual aspects of your layout. By implementing relays and switches, you can streamline the control of accessory functions, adding a level of automation and realism to your model train experience, while offering versatile options for customizing your layout’s operation.
Troubleshooting Common Issues
Short circuits can disrupt the operation of your model train layout, but addressing them effectively involves a systematic approach. First, conduct a visual inspection to check for loose wires and exposed connections. Ensure that all wires are securely connected and properly insulated to prevent any contact between conductive elements. Utilize heat shrink tubing or electrical tape for insulation. If the source of the short circuit is not immediately evident, a multimeter comes in handy. This instrument allows you to pinpoint the exact location of the short circuit, enabling precise troubleshooting and resolution. By following these steps, you can efficiently address short circuit issues, ensuring the uninterrupted operation of your model train layout.
To combat power loss and maintain a dependable and smooth operation of your model train layout, it’s essential to take several key actions. Firstly, assess the sizing of your power districts to make certain they align with the length of track and the number of connected devices, making adjustments as necessary. Secondly, examine the security of your feeder wires, ensuring they are firmly connected to the track and are free from electrical issues that might lead to voltage drops. Finally, to counter resistance over long wire runs, implement bus wire for power distribution. Bus wire, being thicker, efficiently carries power over extended distances, significantly reducing the risk of voltage drop. By adhering to these practices, you can effectively address power loss issues, guaranteeing a consistent and reliable operation of your model train layout and fostering an enjoyable and uninterrupted model train experience.
Addressing lighting issues in your model train layout involves a few crucial steps. First, inspect the orientation and condition of your LEDs to ensure they are correctly installed and in good working order. Pay attention to the polarity, as LEDs are polarized, and connecting them incorrectly can lead to lighting problems. Make sure you’re using the right voltage to power your LEDs to prevent damage. A voltage that exceeds their specifications can harm the LEDs. It’s advisable to test your LEDs with a power source before installing them to confirm their functionality. By following these steps, you can troubleshoot and resolve lighting issues, ensuring that your model train layout is beautifully illuminated and visually appealing.
Model train enthusiasts using Digital Command Control (DCC) systems can encounter specific challenges, and to address DCC-related problems, it’s vital to follow a systematic approach. Start by meticulously adhering to the manufacturer’s instructions for the installation and programming of DCC decoders in your locomotives. The correct installation of decoders is fundamental for enabling your locomotives to respond accurately to digital commands. Next, pay close attention to the address settings, ensuring that each locomotive has a unique and accurately configured DCC address, allowing for independent and precise control. Finally, scrutinize the configuration of your DCC system, including the settings for locomotive speed, direction, lighting, and sound functions, to guarantee that your locomotives respond as intended to your digital commands. By methodically following these steps, you can effectively troubleshoot and resolve DCC-related issues, creating a seamless and responsive model train layout under the DCC control system.
Control Panel Errors
When faced with control panel errors in your model train layout, there are some fundamental steps to consider. If your control panels or switches are not functioning as expected, start by double-checking the wiring connections. Ensure that the wires are correctly attached and secure. Inspect the entire wiring setup for any loose or disconnected wires that may be causing the issue. Loose or improperly connected wires can disrupt the electrical flow and lead to control panel errors. By conducting a thorough examination and addressing any wiring problems, you can resolve control panel issues and maintain the smooth operation of your model train layout.
Adding Lights to Your Layout
The incorporation of lighting elements in your model train layout can dramatically enhance the realism and visual appeal of your miniature world. Here, we’ll discuss the types of lights commonly used, with a focus on street lights and building lights, along with installation tips for a captivating effect.
Types of Lights
LEDs (Light-Emitting Diodes)
LEDs (Light-Emitting Diodes) have become a favored lighting option for model train layouts, offering several advantages that cater to the needs of hobbyists. These advantages include energy efficiency, longevity, and versatility. LEDs are highly energy-efficient, consuming less power than traditional incandescent bulbs, which can be beneficial for layouts with extensive lighting needs. Their extended lifespan minimizes the need for frequent replacements, making them a cost-effective choice in the long run. Additionally, LEDs are available in a wide range of colors and sizes, making them suitable for various lighting applications, whether it’s for creating realistic train signals, illuminating buildings, or adding ambient lighting to your layout. This adaptability and efficiency make LEDs a top choice for enhancing the visual appeal and functionality of your model train world.
Incandescent bulbs, though less energy-efficient compared to LEDs, offer a warm and nostalgic glow that can be a perfect fit for certain scenarios in your model train layout. These bulbs are well-suited for creating vintage or period-specific scenes, providing an authentic ambiance that aligns with historical settings. By opting for incandescent bulbs, you can evoke a sense of nostalgia and capture the essence of a bygone era, enhancing the realism and storytelling potential of your model train layout, particularly when aiming for a specific time period or atmosphere.
Fiber optics offer a unique and precise way to create pinpoint lights in intricate and detailed applications within your model train layout. They are particularly well-suited for replicating stars in a night sky, adding realism to instrument panels, or simulating the illumination of signal lights. The flexibility and adaptability of fiber optics make them a valuable resource for achieving specific lighting effects in your miniature world. By utilizing fiber optics, you can enhance the authenticity and atmosphere of your layout, whether it’s by adding a celestial touch to your night scenes or ensuring that instrument panels and signal lights are accurately represented.
When adding street lights to your model train layout, it’s crucial to select ones that match the era and location you’re modeling. Street lights contribute to the visual ambiance and authenticity of your miniature world. Whether you’re aiming for modern LED fixtures or vintage gas lamps, numerous options are available to suit your chosen time and place. Pay attention to style, design, and scale, ensuring they align with the architectural and historical characteristics of your layout and complement the size of your model trains and scenery. By doing so, you enhance the overall realism and visual appeal of your model train environment.
Wiring Street Lights
To proficiently wire street lights within your model train layout, start by establishing a connection to a suitable power source. This can be achieved through a bus wire or individual feeder wires, ensuring that the voltage and current provided align with the specifications of the LEDs or bulbs you intend to use. Compatibility in voltage and current is crucial to prevent damage or irregular lighting. Secure and reliable connections are pivotal for consistent illumination. Utilize wire clips or connectors to establish these connections, safeguarding against flickering or other potential lighting issues. By methodically following these steps, you can effectively wire your street lights, enhancing the visual realism and ambiance of your model train environment.
Positioning street lights in your model train layout is essential for creating a realistic lighting pattern. To achieve this, place the lights strategically along roads and walkways, mirroring real-world locations. Pay attention to the height and spacing to ensure a lifelike effect. For overhead lighting, consider using lamp posts or overhead wires, especially for urban scenes. These careful positioning decisions enhance the authenticity and visual impact of your model train environment.

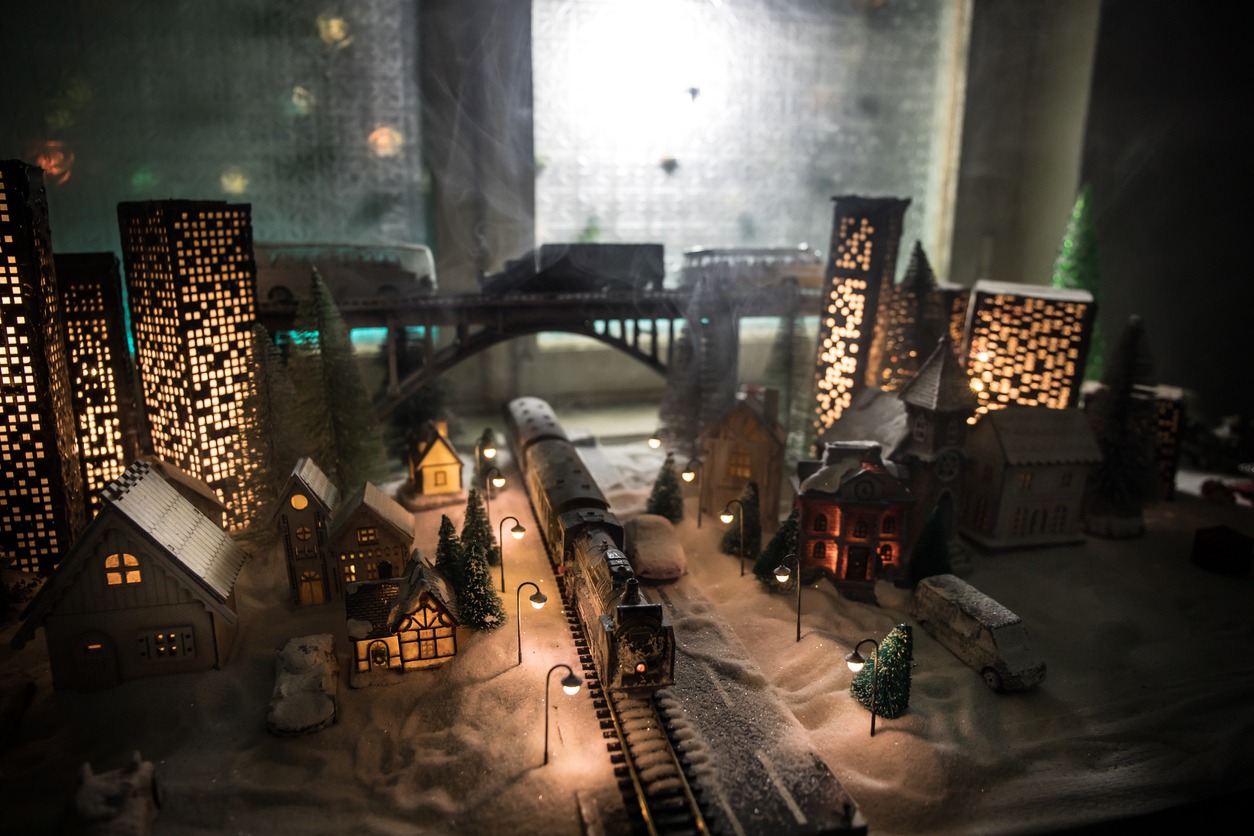

To illuminate buildings in your model train layout, you have several lighting options. Small LEDs, fiber optics, or miniature incandescent bulbs can all be used effectively. LEDs are the most popular choice among model train enthusiasts due to their compact size and low power consumption, making them efficient for creating realistic and energy-efficient building lighting effects.
Create realistic interiors by installing LEDs or bulbs inside your buildings. Use frosted or diffused LEDs to achieve a uniform, soft light. Ensure that windows and doors have window glazing material to diffuse the light.
Wiring for Buildings
When it comes to wiring buildings for lighting in your model train layout, a few essential steps ensure an organized and effective setup. Run wires discreetly, choosing to place them inside the layout or hidden beneath it, to power the building lights. This discreet wiring approach maintains a clean and realistic appearance, preventing unsightly wires from detracting from the overall visual appeal. Additionally, consider installing switches or control systems to manage the building lighting independently. This level of control allows you to turn the lights on and off as needed, enhancing the realism and interactivity of your miniature world, making your model train buildings come to life with precision and convenience.
Employing diffusion materials, such as frosted glass or acrylic, is a valuable technique for achieving a realistic and visually appealing lighting effect in your model train layout. This method is especially significant when illuminating building interiors and lamp posts. Diffusion materials help soften the intensity of the light, distributing it more evenly and reducing harsh shadows. This creates a subtle and lifelike ambiance, enhancing the overall realism and aesthetic appeal of your miniature world. By incorporating these materials, you can achieve a balanced and pleasing lighting effect, adding to the authenticity and charm of your model train environment.
Weathering your lighting elements is a valuable technique to impart a realistic and aged appearance to your model train layout. This process involves adding paint or weathering powders to mimic the effects of exposure to the elements, such as dust, dirt, and corrosion. Weathering can add authenticity to your lighting fixtures and make them blend seamlessly with the overall scene. It’s especially effective for recreating a vintage or weathered look, enhancing the overall realism and visual appeal of your model train environment.
Utilizing dimming options available in certain LEDs and lighting systems can be a valuable tool in your model train layout. Dimming allows you to adjust the brightness of your lights, aligning them with different times of the day or specific scenes you want to recreate. This flexibility provides you with the means to add a dynamic and realistic touch to your layout by replicating the changing lighting conditions that occur throughout a day or during various scenarios. Whether you’re recreating the soft glow of dawn, the brilliance of midday, or the subdued evening lighting, dimming options enhance the overall authenticity and visual impact of your model train environment.
Test Before Installation
Before permanently installing lights and wiring in your model train layout, it’s imperative to conduct a thorough testing phase. This step ensures that your lights function correctly and create the desired lighting effect. By testing your lighting setup before installation, you can identify and address any issues, such as faulty connections or inadequate brightness, and make any necessary adjustments to achieve the intended effect. This precaution not only saves time and frustration but also ensures that your lighting installation is reliable and enhances the realism and visual appeal of your model train environment.
Realistic Scenery with Electronics
Creating realistic scenery is a fundamental aspect of model train layouts, and incorporating electronics can take your scenery to the next level of authenticity and immersion. Here, we’ll explore how to enhance your scenery using electronics, focusing on static grass applicators, water effects, and sound modules.
Static Grass Applicators
What They Are
Static grass applicators are devices that use static electricity to make model grass fibers stand upright, mimicking the appearance of real grass. They come in various sizes and types, including handheld and standalone units.
How They Work
When you apply a special adhesive and then use the applicator, it charges the grass fibers with static electricity, causing them to stand up as they land on the adhesive-covered surface.
- Choose the appropriate length and color of grass fibers to match your scenery.
- Experiment with different grass lengths and colors to create realistic variations in your landscape.
- Ensure your adhesive is evenly spread and dried before using the applicator.
Creating Water Features
Water features, be it a meandering river, serene lake, tranquil pond, or cascading waterfall, are captivating additions that can greatly enhance the aesthetics and realism of your model train layout. These features bring an added layer of natural beauty, depth, and ambiance to your miniature world, creating scenic focal points and opportunities for creative detailing. Whether you’re modeling a tranquil countryside scene or an urban environment with a bustling waterfront, water features serve as both visual delights and storytelling elements, adding to the overall charm and allure of your model train environment.
Water Effects Products
Water effects products, such as clear epoxy resins, play a pivotal role in achieving the illusion of water in your model train layout. These products are specifically designed to replicate the appearance of water and are commonly used for various water features like rivers, lakes, and ponds. They can be applied by either pouring or brushing them onto your layout, allowing you to create a stunning and realistic water effect. These clear epoxy resins, when applied with skill, provide a convincing depth and sheen to your water features, adding an extra layer of authenticity to your miniature world.
Electronics can enhance water effects in several ways:
- Install underwater LED lighting to illuminate your water feature, creating a realistic and visually striking effect, especially for night scenes.
- Sound modules with water sounds can add an auditory dimension to your water features, further enhancing realism.
Sound modules are valuable additions to your model train layout, offering a means to enhance realism by introducing auditory elements. These small electronic devices have the capability to produce a variety of sounds, such as train whistles, station announcements, and ambient noises, effectively immersing your audience in a multi-sensory experience. By incorporating sound modules, you can breathe life into your model train environment, creating a more authentic and engaging setting that captivates the senses and elevates the overall realism of your layout. Whether you’re modeling a bustling train station, a tranquil countryside, or an industrial landscape, sound modules contribute to the charm and vibrancy of your miniature world.
Types of Sounds
Sound modules bring a wealth of auditory richness to your model train layout, with the ability to mimic a wide range of authentic sounds, from the haunting wail of train whistles and the cheerful melody of birdsong to the soothing rush of running water and the informative station announcements. To maximize the impact of these sound modules, it’s crucial to follow specific installation guidelines. Firstly, conceal the modules beneath your layout, positioning them as close as possible to the source of the sound they represent. This discreet placement ensures that the source of the sound remains hidden, preserving the illusion and bolstering overall realism. Secondly, integrate the sounds with their corresponding visual elements on your layout. For example, when using a sound module with water sounds, place it near your water features, harmonizing the auditory and visual components. By following these tips, you can create a truly immersive model train environment that engages the senses and elevates the authenticity of your miniature world.
Certain sound modules offer the advantage of integration with your layout’s control system. This capability allows you to trigger specific sounds at designated times or in response to particular events, contributing to a dynamic and interactive model train environment. Whether you wish to synchronize the chug of a locomotive’s engine with its movement, simulate a whistle when a train approaches a station, or add ambient sounds to specific scenes, the integration of sound modules with your control system offers an advanced level of control and realism. This feature enables you to orchestrate the auditory elements of your layout with precision, enhancing the overall experience for both you and your audience.
Advanced Electronics for Model Trains
As your model train layout evolves, you may wish to explore advanced electronics that offer enhanced automation, control, and integration with software. Here are some advanced electronic features to consider:
Automation and Control Systems
Digital Command Control (DCC)
DCC systems provide precise control over locomotives and accessories. They allow you to independently control multiple trains, program routes, and incorporate automation. DCC decoders in locomotives interpret digital signals and execute commands, providing a higher degree of realism and flexibility.
Block detection systems with occupancy sensors are a sophisticated addition to your model train layout, enabling automation and precise train operation. Occupancy sensors are designed to detect when a specific section of track is occupied by a train, thus enabling automatic signaling, routing, and control. This technology is particularly useful for creating a more realistic and hands-free experience, allowing trains to respond to track conditions and other trains. With block detection and occupancy sensors, you can implement advanced operational features, such as automatic train control, signaling, and traffic management, significantly enhancing the overall interactivity and authenticity of your model train environment.
Incorporating automated turnout control systems into your model train layout can significantly enhance the convenience and efficiency of managing your tracks. These systems can be seamlessly integrated with your Digital Command Control (DCC) or control system, allowing for remote switching of turnouts and route management. This integration enables you to control turnouts through software interfaces or physical control panels, providing flexibility and precision in managing the direction and routing of your trains. Automated turnout control simplifies the operation of your layout, allowing you to focus on the creative aspects of model railroading while optimizing the functionality and realism of your model train environment.
Sensors and Detectors
In addition to block detection, occupancy sensors can be used to trigger various actions, such as activating signals, triggering sound effects, or controlling lighting as a train passes through specific sections of the layout.
Infrared sensors are invaluable tools in model train layouts, offering the ability to detect the presence of trains or objects with precision. These sensors are commonly employed in scenarios like level crossings and grade crossings, where they serve to automatically lower barriers or activate signals when a train approaches. Infrared sensors use infrared light to detect objects, making them reliable and efficient devices for enhancing the safety and realism of your model train environment. Whether you’re replicating a bustling railway intersection or a rural grade crossing, these sensors add a layer of authenticity by responding to the presence of trains, creating a dynamic and engaging layout for both hobbyists and viewers.

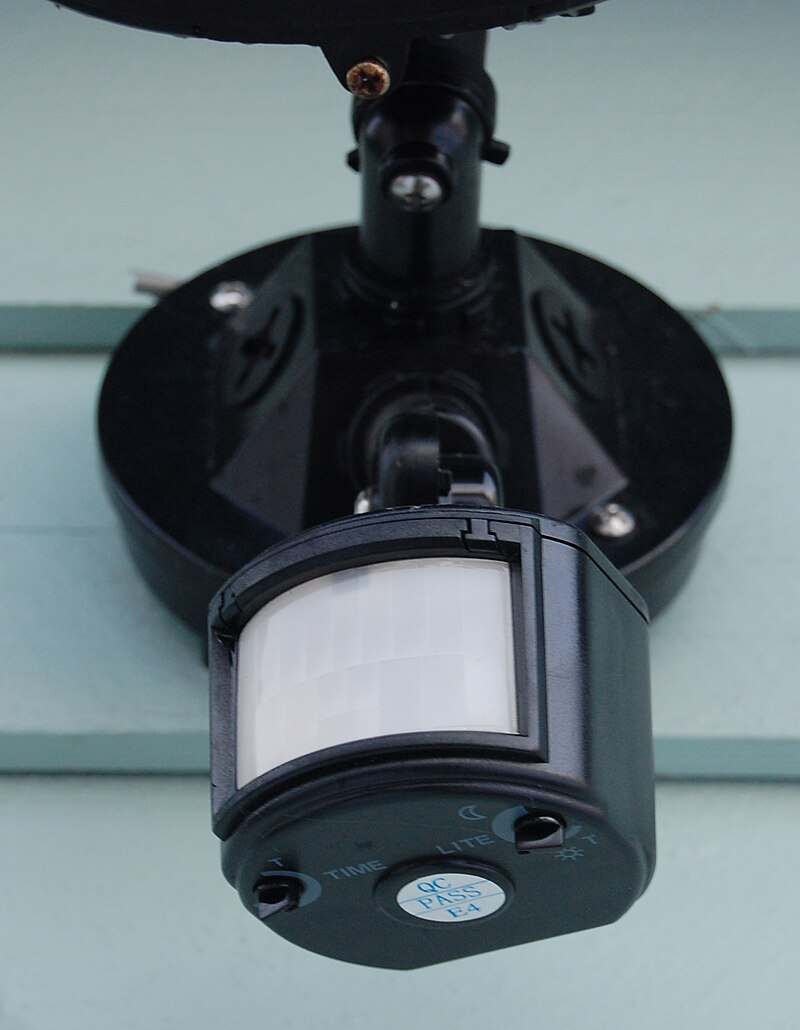

Proximity sensors are versatile components that find utility in model train layouts, primarily for detecting the position of rolling stock or other objects on the layout. These sensors enable automation and interaction with the control system, adding a layer of sophistication to your model train environment. Whether you’re using them to precisely control the stopping and starting of trains, trigger specific actions, or provide feedback to your control system, proximity sensors enhance the interactivity and realism of your layout. They are a valuable tool for creating a dynamic and engaging model train experience, making your miniature world come to life with precision and control.
Integrating with Software
Layout Control Software
Several software programs are available for controlling and automating your model train layout. These programs can manage multiple trains, accessories, and routes, providing a high level of customization and control. Some popular software options include JMRI (Java Model Railroad Interface), Railroad & Co., and Win-Digipet.
For model train enthusiasts using Digital Command Control (DCC) systems, programming DCC decoders is a key aspect of fine-tuning locomotive performance and features. Software is commonly employed to accomplish this task, granting you the ability to adjust and customize various aspects of your locomotives. With software, you can fine-tune speed curves to achieve smoother acceleration and deceleration, configure lighting effects to replicate specific scenarios, and tailor sound functions to create a more realistic and engaging auditory experience. This level of control ensures that your locomotives operate precisely as desired, enhancing the overall realism and enjoyment of your model train layout.
Incorporating interactive displays into your model train layout can offer a cutting-edge and user-friendly experience. By using software, you can create interactive displays, such as touchscreens, that enable effortless control of trains, accessories, and other features on your layout. These displays provide an intuitive and hands-on way to operate and manage your model trains, enhancing the enjoyment and interactivity of your model train environment. Whether you’re switching tracks, adjusting lighting, or even controlling sound effects, interactive displays simplify the process, making it more engaging for hobbyists and viewers alike.
3D Design and Visualization
Leveraging software tools for 3D design and visualization is a valuable asset in the model train hobby. These tools empower you to craft intricate 3D representations of your layout, offering a comprehensive view of your design. This capability aids significantly in the planning and visualization stages, allowing you to foresee the final result before embarking on physical construction. By creating a digital prototype, you can experiment with track arrangements, scenery elements, and even lighting to ensure that your vision is realized with precision. This approach streamlines the layout planning process, minimizing the need for costly modifications and enhancing the efficiency and realism of your model train environment.
In this comprehensive guide, we’ve explored the fundamental role of electronics in elevating model train layouts to new heights of realism and interactivity. Beginning with the basics such as wires, LEDs, and switches, we delved into the intricacies of wiring techniques, emphasizing safety protocols. We then discussed the transformative impact of lighting, detailing the strategic placement of street lights and building illuminations. Moving beyond, we examined advanced techniques like static grass applicators for lifelike landscapes, water effects with epoxy resins, and the integration of sound modules. Exploring the realm of advanced electronics, we highlighted the power of automation through systems like DCC, occupancy sensors, and proximity detectors, emphasizing their role in precise control. Moreover, we emphasized the synergy of electronics and software, enabling dynamic layouts through interactive displays and 3D visualization. By amalgamating creativity with these electronic facets, model train enthusiasts can craft miniature worlds that are not only visually striking but also operationally intricate, offering a hobby that blends artistry, technology, and endless fascination.
